Single
Glazed

With sleek, minimalist designs, our single glazed partition systems meet a broad range of acoustic and design requirements, catering across all budgets for commercial and home applications.

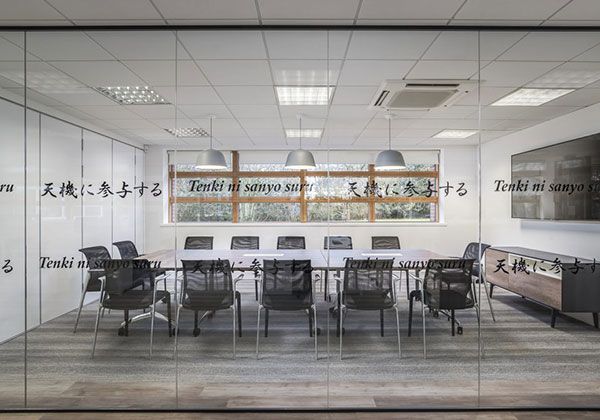

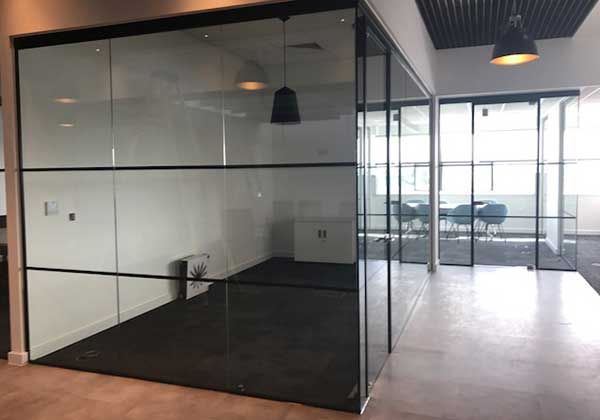

SG01

The SG01 is the most popular system offering a minimalist look coupled with optimum strength. Working with toughened and laminated glass it offers acoustic properties and can be finished in Satin Aluminium, Brushed Stainless Steel effect or any RAL colour, working with both framed and frameless doors.
*With the option of a deeper head and wall track for switchable glass cabling.

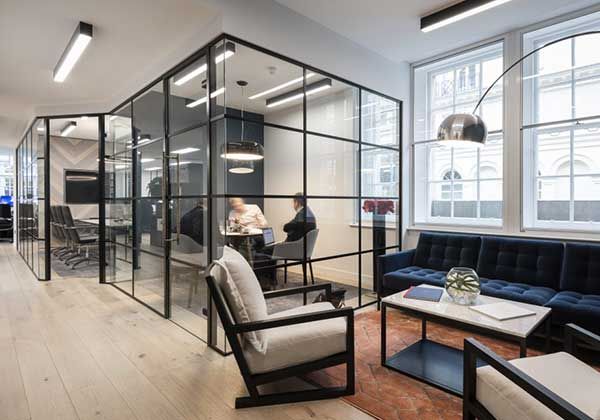

SG02

The SG02 2 part deflection head can be combined with the SG01 system to cater for installations where increased movement to the ceiling is needed.

SG03

The SG03 Georgian system is fast becoming the new standard for a more aesthetic look. Using the same SG01 tracks with the addition of Georgian bars bonded to the inner and outer glass surfaces the result is a striking appearance which can be personalised to create different window sizes. Whilst black is the standard we can also supply the system in any RAL colour with toughened and laminated glass offering additional acoustic properties.

Acoustics

All of our single glazed partitioning systems are designed to work with 10mm and 12mm toughened safety glass which offer a degree of acoustic performance. We also offer 10.8mm and 12.8mm laminated glass for a better acoustic rating which can be combined with framed and unframed doors with acoustic gaskets and drop down door sills for meeting rooms and receptions or room dividers where noise transfer can pose an issue.

Many projects combine a mix of toughened and laminated glass screens, which look the same but offer different acoustic properties enabling you to keep the aesthetics consistent without adding cost where it’s not necessary.

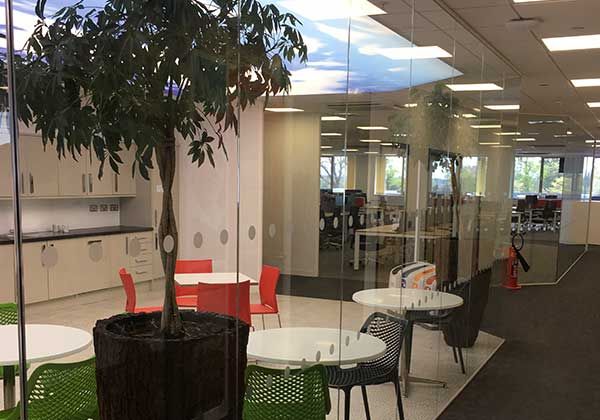

Inter panel glazing joints

Glass offices and partition screens can really appear frameless with the latest technology of dry joint inserts. These have a far better appearance than silicone joints and enable the system to be dismantled or reconfigured with minimal disturbance. Installation time is also improved which benefits cost.  All of our single glazed systems can be installed using dry joint technology or silicone joints.  For Georgian bar systems the painted bars work in line with the vertical joints so you do not see the glazing joints. The maximum size of the glass panels depends on access to the building/floor.

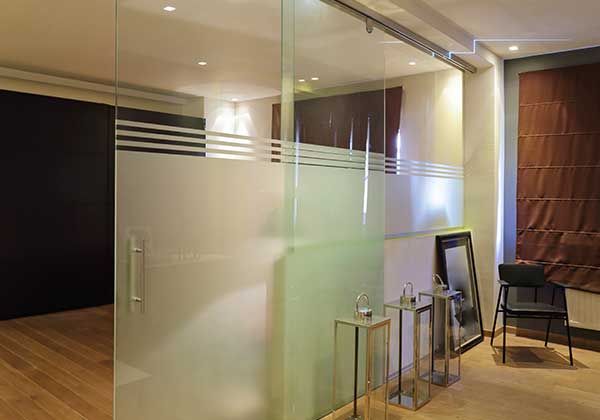

Manifestation

In addition to providing the basics, such as the construction of glazed offices, walls and floors we also provide manifestation to the glass panels.  When it comes to building regulation, glass offices and partitions must meet the minimum health and safety standards. Whilst it would be nice to see a long run of perfectly clear glazing, the invisibility of glass in a commercial environment poses a safety risk to visitors and staff.  The minimum DDA requirement for commercial glazing is 2 levels of manifestation between 850-1000mm and 1400-1600mm from the floor. This can be in the form of a simple band of frosted dots or squares applied to one face of the glass or it can be in the form of logos or a decorative pattern. Nowadays the use of dots and squares is limited to short term and public areas with highly creative and individual designs of manifestation being used in most situations. The option of a Georgian bar system negates the need for manifestation given you are not too minimalist in your design of squares.

We are happy to quote for any design of manifestation needed, from the very simple to the complex. When we leave site we apply diagonal strips of low tack white tape to the glass to cover any health & safety risk in the short term.
