Single Glazed Screens

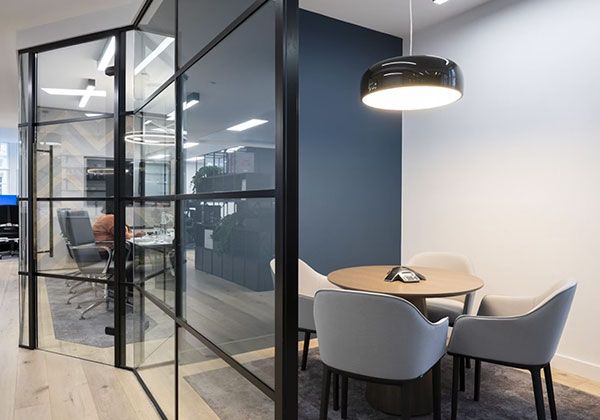

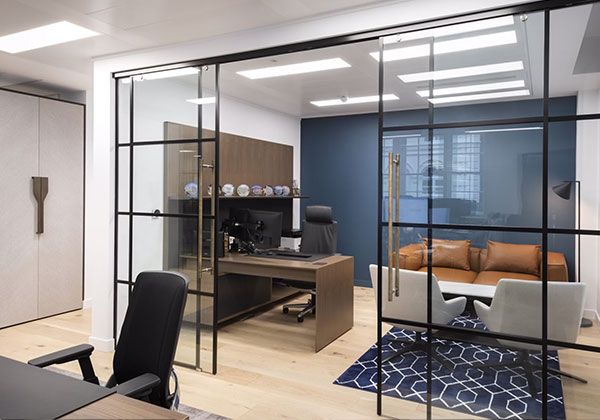

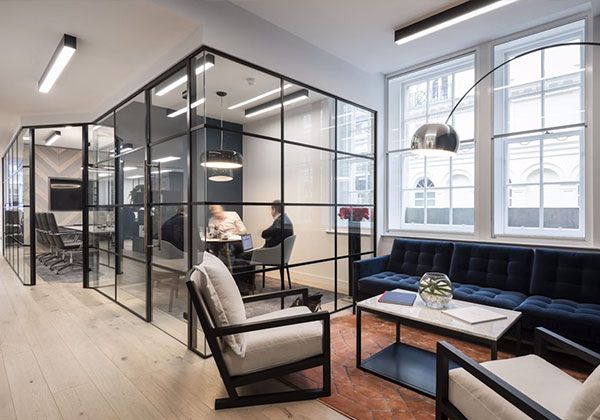

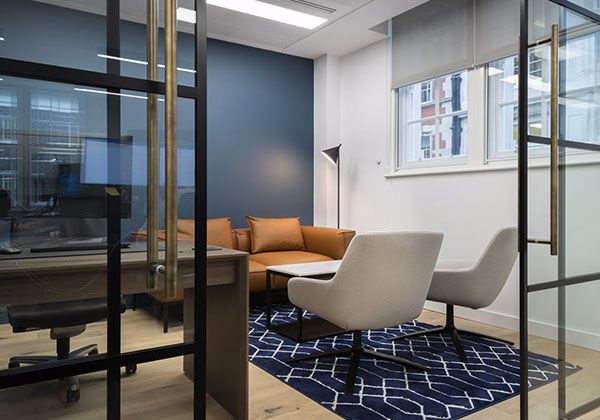

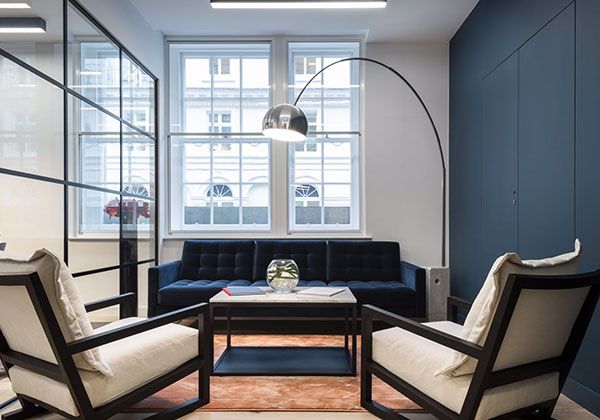

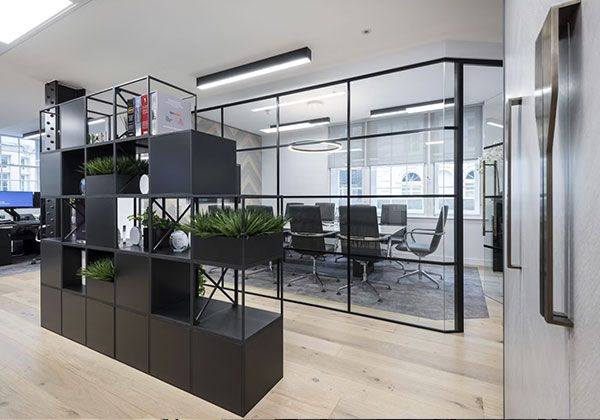

Customisable Georgian Glazing

Using the same channels as the standard single glazed partitioning systems but with the addition of 25mm or 30mm wide Georgian flat bars bonded to the inner and outer glass surfaces the result is a striking appearance which can be personalised to create different pane sizes. Whilst black is the standard we can also supply the system in any RAL colour with toughened and laminated glass offering additional acoustic properties.

INTER PANEL GLAZING JOINTS

Glass partition screens appear frameless with dry joint inserts. These have better appearance than silicone joints and enable the system to be dismantled or reconfigured with minimal disturbance. Installation time is also improved which benefits cost. Our single and double glazed systems can both be installed using dry joint technology.  For single glazed systems the flat aluminium painted bars are adhered to both sides of the glass where the panels meet so the glass joints are not visible. For double glazed systems the bars are applied to only one skin of glass so the second skin has visible dry joints. The bars can be applied to either the outer or inner glass skin depending on the customers wish. With Fire rated systems the glass panel joints require a ceramic fire tape to the centre with intumescent mastic capping to each face. This conforms to the fire rating required and glass thickness used but is then covered by the aluminium flat bars to each side so becomes invisible.
