Flat
Rooflights

Flat rooflights come in a range of styles to suit your project. These include, Fixed, Hinged, Sliding, Walk-On, Access, AOV Smoke Vents, Multi-Section as well as Bespoke.

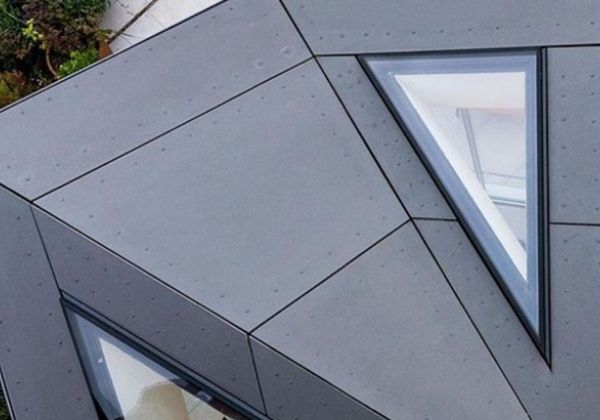

Flatglass Standard rooflights

Flatglass rooflights can be supplied as double or triple glazed units in a wide range of shapes and sizes to suit different commercial areas. Maximum standard kerb sizes for rooflights using a single glazing pane:

Double glazed

  • Square: up to 1.8 x 1.8 m or 3.3m² as standard, up to 2.3 x 2.3m to special order.
  • Rectangular: up to 4.9m² (Toughened Glass) as standard, up to 7m² single pane to special order.
  • Circular: up to 2.2 m diameter for single pane.
  • Recommended pitch: 5° up to 2m span, 10° over 2m span.

Triple glazed

  • Square: up to 1.8 x 1.8m.
  • Rectangular: up to 3m² as standard.
  • Circular: up to 1.8m diameter single pane.
  • Recommended pitch: 5º up to 2m span, 10º over 2m span.

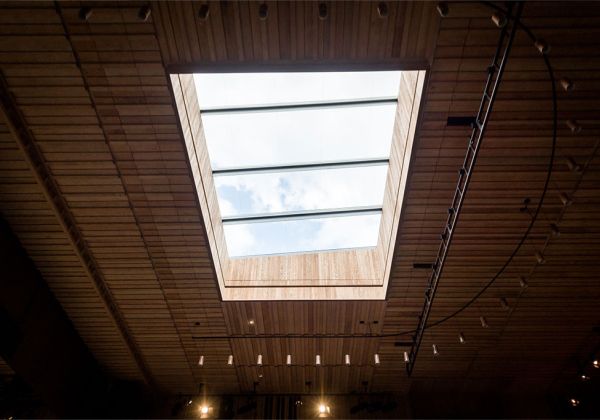

Where larger rooflights are required, over and above single maximum pane sizes, we can supply Multi-Section rooflights. These provide the same characteristics and sleek profile as the single pane units. Maximum spans up to 3.2m can be accommodated (free span slope length 3.2m). There is no limit on the length of the rooflight as the units can be added to to create the desired length however the glazing bar centre to centre dimension will depend on the width of the span.

The standard glass specification for rooflights has an outer toughened panel with an Argon filled cavity and inner Low-E laminated or heat soak tested toughened (HST) panel. They can be supplied in both double glazed and triple glazed versions with the option of sandblasted or painted borders.

The glass thickness for the outer panel ranges from 5mm, 6mm, 8mm, 10mm, 12mm toughened with the inner panel being 5mm, 6mm, 8mm heat soak tested toughened or 6.8mm, 8.8mm, 10.8mm, 13.5mm and 17.5mm clear laminated. Triple glazed units have a 6mm heat soak tested toughened intermediate panel.

For additional security and peace of mind we also off the Fixed Flatglass Protect+ rooflight which has been awarded Certisecure accreditation. This is achieved through specialist design, using stronger laminated glass and upgraded fixings to maximise the product security.

The Fixed Flatglass Protect+ unit has undergone specific attack testing by Exova, a leading independent testing facility to determine whether it can withstand an intruder attempting to gain entry to a property via the rooflight.

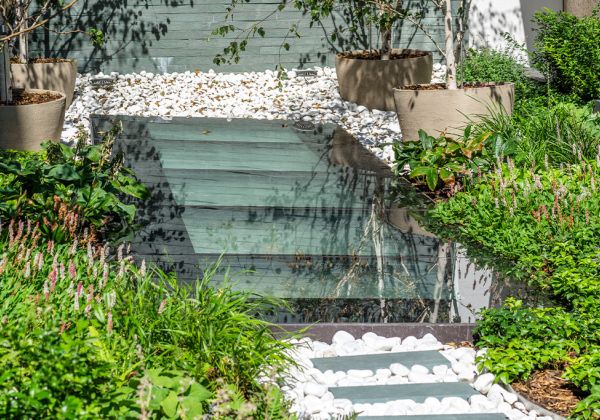

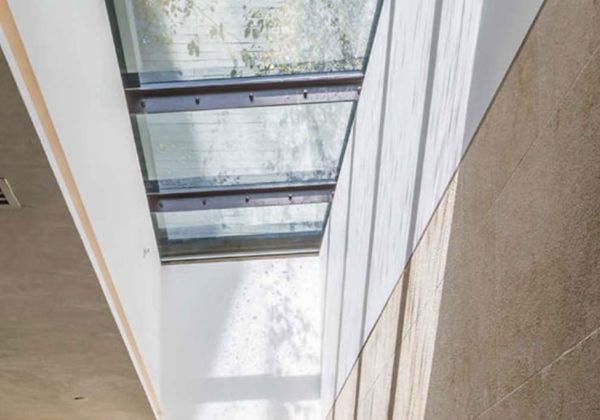

Flatglass Walk-On Rooflights

Walk-On rooflights are designed to the current British and European Standards (BS EN 1991-1-1), they have the capacity to withstand a uniformly distributed load of 1.5kN/m2, or a concentrated load of 2.0kN. Higher loads can be accommodated via special order.

As with standard rooflights our Walk-On rooflights are available in Rectangular, Circular, Square, Multi-Section and Bespoke configurations.

Our Walk-On specification rooflights are available in a range of standard kerb sizes:

  • Single panel - up to 1.2 x 3m or 3.6m², larger sizes are also available.
  • Multi-Section - up to 2.4m slope span, unlimited length with bays at up to 1.2m centres.

Walk on rooflights have an Anti-Slip glass surface to BS 7976-2.

For Commercial applications we use 39mm toughened laminated outer with 16mm argon cavity and 6mm low-e toughened inner (heat soaked toughened).

For Heavy duty commercial applications we increase the outer to 48mm toughened laminated.

Flatglass Hinged Rooflights

Electric Hinged

Our electric hinged Flatglass rooflights are operated by fully concealed 24v or 230v chain actuators. Minimum kerb span required: 500mm.

Maximum standard kerb sizes for electric hinged rooflights:

  • Square: up to 1.8m x 1.8m²
  • Rectangular: up to 1.2m x 2.7m or 3.3 m²

Larger sizes require multiple, synchronised actuators and specialist refurb planning.

Manual Hinged

Our manual hinged Flatglass rooflights are operated by a worm gear spindle.

Maximum standard kerb sizes for manual hinged rooflights:

  • Square: up to 1.7m x 1.7m
  • Rectangular: up to 1.5m x 2m or 3m²

A double spindle is required for units over 1.4m long.

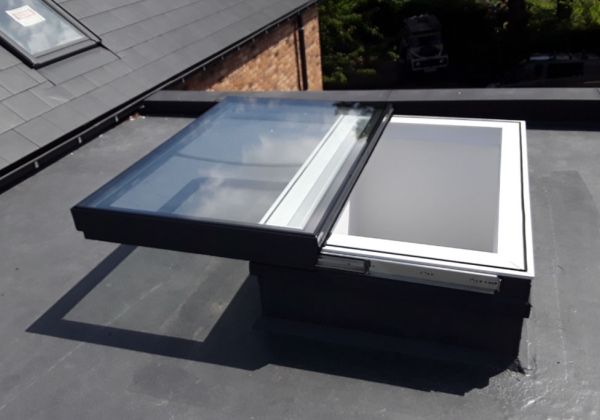

Flatglass Slide-Open Rooflights

Operated by concealed 24v or 230v electric chain actuators, our Flatglass slide-open rooflights are ideal for providing ventilation or roof access in areas where high wind loadings may occur, making hinged rooflights unsuitable.

Our Flatglass Slide-Open rooflights are double glazed, available in a range of standard kerb sizes:

  • Square: 800mm x 800mm up to and including 1.2m x 1.2m
  • Rectangular: 800mm x 900mm up to and including 1.2m x 1.5m

Maximum opening length: 1.2m

Flatglass Hinged AOV Access Rooflights

Electric access hatches powered by two 24v actuators. Units open to 140° with a solid top or 90° with a glass top for easy access.

Our Flatglass electric access hatches are double glazed as standard and available in 1m square and 1.5m square configurations.

1m2 is sized to suit an external upstand 1284mm x 1344mm

This requires a structural opening of 1084 x 1144mm with a 100mm upstand formed all round to reach the required external upstand size of 1284 x 1344mm

1.5m2 is sized to suit an external upstand 1284mm x 1884mm

This requires a structural opening of 1084 x 1684mm with a 100mm upstand formed all round to reach the required external upstand size of 1284 x 1884mm

Access Hatch Options: Switch operated for access or automatic opening for smoke ventilation to EN12101

Accessory Options: Daily vent switch, daily vent panel, AOV battery back-up panel, smoke detector, heat sensor, rain sensor, wind sensor, gas detector.

Glass Options for Flat Rooflights

Options for the glass include Solar Control, Hard Coat Low E, Soft Coat Low E, Super Soft Coat Low E, Ritec Clearshield, Solar Silver Reflective, Bio Clean and Anti-slip.

The colour of the glass can be Clear, Neutral, Blue, Bronze, Green, Grey, Satin, Low Iron as well as with Vanceva coloured interlayers for the laminated glass options. The sealed units also have the option of a sandblasted or painted border.

The glass sealed units are held within a thermally broken aluminium frame with a polyester powder coated surface finish with the possibility of the inside surface being a different colour to the outside.

The standard colours available are Anthracite Grey (External) / Gloss White (Internal), Anthracite Grey (RAL 7016), Gloss White (RAL 9010), Jet Black (External) / Gloss White (Internal), Jet Black (RAL 9005), Slate Grey (RAL 7015). Other RAL colours are available to order.

With the inclusion of more specialist glazing systems we can also offer CWCT Class 1 and Class 2 Non-fragile rooflights.
